Specifications Bandwidth 10 kHz - 1.5 GHzĭisplay 2.8" Touch-screen TFT LCD (320x240)Ĭaution! The NanoVNA only works with MicroSD cards <32GB. The NanoVNA-H4 with 3.95" touch-screen can be found here.
NanoVNA-H has made an elaborate Wiki page with all guide steps and more information. There are many different versions in circulation, we sell the original NanoVNA-H by Hugen. This Antenna Analyzer is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld.The default firmware main function is used for antenna performance measurement. Furthermore, the NanoVNA-H has a built in 650 mAh battery and can be connected to an android phone or PC via USB(-C).īoth an WebApp for google chrome and an Android app are available controlling the analyser and displaying measurements. The analyser has a 2.8" touch-screen that can show the measurements in 101 points. EVTSCAN Latest NanoVNA Vector 10KHz -1.5GHz HF VHF UHF Network Analyzer measure S settings, standing wave ratio, phase, delay, Smith diagram (latest version.

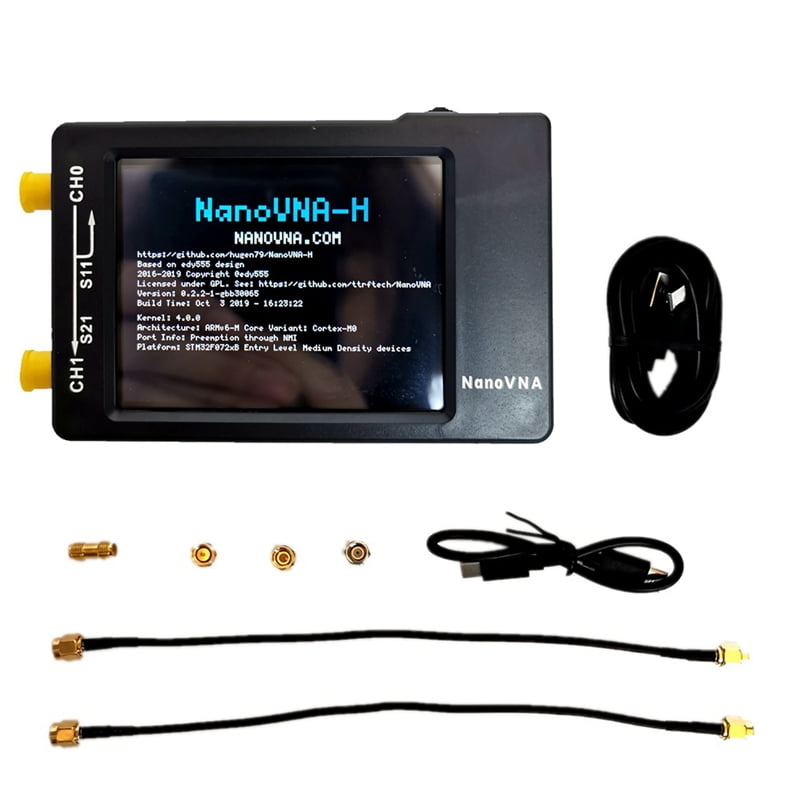

The NanoVNA-H is a portable 10 kHz - 1.5 GHz vector network analyser designed to measure reflection and transmission coefficients of equipment without the need for a large analyser.
